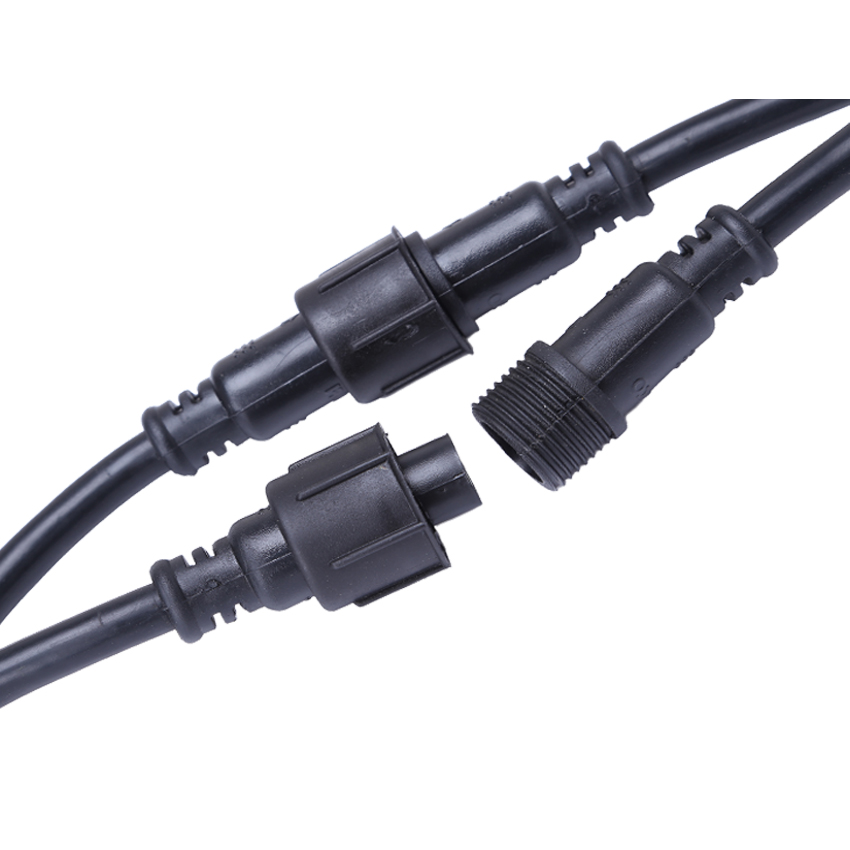

Wire connectors A-02-001 waterproof connector terminal 2.4A 6A 12A
Product Description
Wire connectors A-02-001 waterproof Connector terminal 2.4A 6A 12A
Product Description

SPEC.
A-02-001
Production Name | wire connectors waterproof connector 2-6pins |
Item NO. | A-02-001 |
Brand | RMEECO |
Connectiong Mode | Male to Female connector |
Production Level | IP68 |
Size | M18 |
Color | Black or White |
Contact diameter x Qty | 2pin 3pin 4pin 5pin 6pin |
Current rating(A) | 2.4A/4A/6A/8A/12A |
Temperature Rating | -40℃----105℃ |
Prevent the combustion level | UL94-V0 |
Pin & OD mm² | |
2 Pin | 2X0.3, 2X0.5, 2X0.75, 2X1.0 , 2X1.5 |
3 Pin | 3X0.3 , 3X0.5 , 3X0.75 , 3X1.0 |
4 Pin | 4X0.3 , 4X0.5 , 4X0.75 |
5 Pin | 5X0.3 , 5X0.5 |
6 Pin | 6X0.3 , 6X0.5 |
Certification | CCC , UL , VDE , CE , RoHS |
Material | |
shell&insulated parts | PVC , Rubber |
Main Characteristics | |
Sealed against dust and fluid (IP68) | |
Vibration resistance , impact resistance , stretching resistance | |
Application industries | |
Outdoor LED light , Street lamp , Landscape , Power supply |
