IP68 3 pin waterproof M15 low voltage power cable connector
Product Description

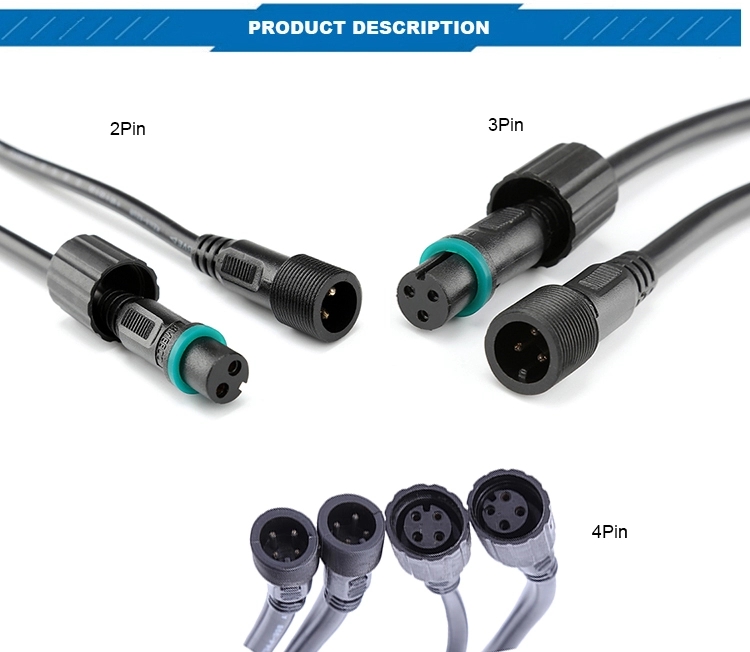

2pins to 4 pins CE ROHS M15 LED light Connector waterproof connector
Product Description
SPEC.
A-02-008
| Production Name | M15 Outdoor waterproof wiring harness connector for led cable 2 3 4 Pin |
| Item NO. | A-02-008 |
| Brand | RMEECO |
| Connectiong Mode | Male to Female connector / Screw type |
| Production Level | IP68 |
| Size | M15 |
| Color | Black or White |
| Wire Gauge | <=1.0mm² |
| Contact diameter x Qty | 2pin |
| Current rating(A) | 8A |
| Voltage rating(V) | 220V |
| Temperature Rating | -40℃----105℃ |
| Prevent the combustion level | UL94-V0 |
| Pin & OD mm² | |
| 2 Pin | 8A <=1.0mm² |
| 3 Pin | 6A <=0.75mm² |
| 4 Pin | 4A <=0.5mm² |
| 5 Pin | 2.4A <=0.3mm² |
| Certification | CCC , UL , VDE , CE , RoHS , ISO9001 |
| Material | |
| shell&insulated parts | PVC , Rubber |
| Main Characteristics | |
| Sealed against dust and fluid (IP68) | |
| Vibration resistance , impact resistance , stretching resistance | |
| Application industries | |
| Outdoor LED light , Street lamp , Landscape , Power supply | |
